    ATC cnc router machine ,change 3 cutters freely ZK-1325(1300*2500*200mm)

    Ask Lasest Price
    Brand Name : cnc-machiningcam
    Certification : CE,FDA
    Model Number : ZK-1325(1300*2500*200mm)
    Price : 6400$-9300$
    Delivery Time : 7-13 working days
    Payment Terms : T/T,WESTERN-UNION,ESCROW
    Supply Ability : 422 sets/month
    • Product Details
    • Company Profile

    ATC cnc router machine ,change 3 cutters freely ZK-1325(1300*2500*200mm)

    ATC cnc router machine ,change 3 cutters freely ZK-1325(1300*2500*200mm)

    Machine's feature of ATC cnc router :

    1, Heavy duty body ,ensure the machine working more stable ,and has higher precise.

    2, Japan YASKAWA servo motor and driver, ensure the mahcine high precise and long use life.

    3, Z axies Taiwan TBI ball screw,make the machine working more accurate.

    4, Artcam design software,easy operate and learn.

    5, Original PCI Nc-studio control system,support change the cuttes freely ,suiatble for WINDOWXP/7.

    6, Independent control carbinet ,easy check and operate.


    Application of ATC cnc router:

    1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,shoes cleaning machine,the cabinet of the playing machine and the board,mahjong table,computer table .


    2.Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.


    3.Model industry:It can engrave on the steal materials such as copper, aluminum ,iron etc and non-mental materials such as man-made marble, sand, plastic board PVC materials, wood board etc.


    4.Other field:It can engrave many image, embossment,and widely used in artistic industry.

    Parameter of ATC cnc router:

    Spindle Power

    Every spindle 2.2KW water cooling

    Spindle Speed

    0-24000r/min

    X,Y,Z axies working size

    1300*2500*200mm

    X, Y ,Z axies Transmssion

    X,Y axies gear rank,

    Z axies Taiwan TBI ball screw

    Guide rail

    Taiwan PMI liner squire guide rail

    Drive Mode

    Servo motor

    Control System

    Original PCI Nc-studio System
    (Option: DSP offline, Mach3 control system)

    Design software

    Artcam
    Options:(Type3 , Ucancam, JDPaint , Mach3 )

    Max.Traveling Speed

    32000mm/min

    Max. Working Speed

    12000mm/min

    Repositioning precision

    ±0.02mm

    Mechanical precision

    0.03mm

    Command

    G Code, *uoo, *mmg, *plt

    Suitable tools dimeter

    ER11
    3.175mm 4mm 6mm

    Working Voltage

    AC220V/380V, 50/60Hz, single/three phase

    Warranty

    1 year for the mahcine ,half year for the spindle

    Certificate

    CE

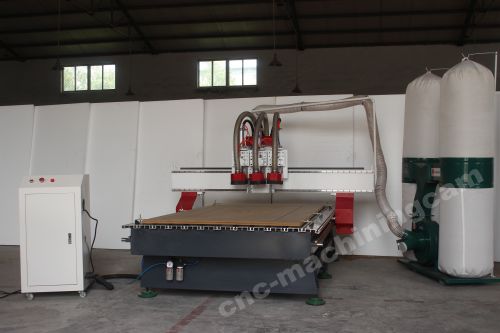

    Samples of ATC cnc router:

    Your enquiry is welcome!!
