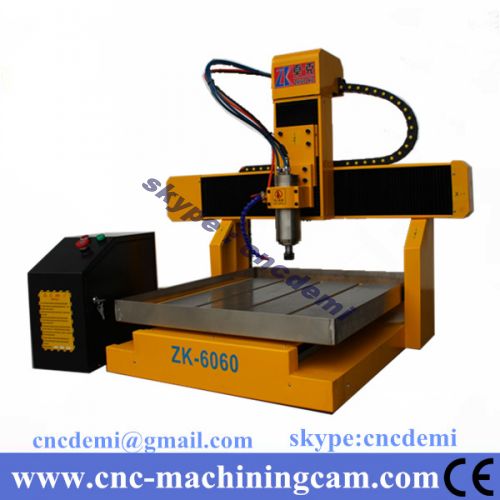

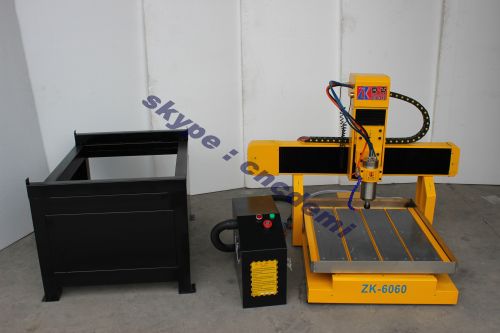

separate cnc router machine for wood/metal/stone cutting and
engraving 6060(600*600*250mm)
Machine’s feature of separate cnc router machine for wood/metal/stone cutting and
engraving:
1.2.2kw mould water cooling spindle, can realize only diameter 1mm
engraving line,
on the hardness materials.
2. Z axies Tainwan TBI ball screw. feeding height is :250mm
3.Leadshine servo motor and driver best price and performance.
4.Auto tool calibration help you to set the tools, not break the
tool nose, ensure the accurate.
5.Stainless steel water tank ,when processing the metal materials
,cooling the materials and the cutters,
prolong the use life.
6.Mach3 control system,support windowXP/7,suitable for desktop
computer ,good perfromance.
7.Ergency stop button, ensuring the operation safe.
8. Taiwan PMI squire guide rail,ensure the higher quility and precise.
Machine’s application of separate cnc router machine for wood/metal/stone cutting and
engraving: :
1.Metal, copper,iron, aluminium, steel, stainless
stee...2D/3Dengraving, thin metal cutting.
2.Also can for the wood engraving&cutting, stone engraving,
PVC, MDF, acrylic, organic glass, glass....
Parameter of separate cnc router machine for wood/metal/stone cutting and
engraving::
Certificate | CE |
Effective working area | 600(X)mm*600(Y)mm*250(Z)mm |
Moving type | Platform moving |
Structure | Cast iron body and gantry |
Water cooling system | Stainless steel water slot |
Working table | Aircraft aluminum T slot |
Guide rail | Taiwan Hiwin square guide rail |
Transmission | Taiwan TBI Ball screw for X Y Z-axis ( YYZ-axis: #1605) |
Driving mode | Stepper motor |
Spindle motor | 2.2kw mould water cooling |
Spindle speed | 0-24000rpm |
Spindle collet type | ER 11 |
Cutters diameter | 3.175mm 4mm 6mm 8mm 10mm 12.7mm |
Voltage | AC 220V, 50/60Hz, single phase |
Empty traveling speed | 0-8000mm/min |
Engraving speed | 0-6000mm/min |
Machine accuracy | 0.03mm |
Diagonal error | 0.5mm |
Resetting accuracy | 0.05mm |
Control system | Mach3 Options:(PCI NcStudio,DSP offline ) |
Motor wire | High soft specially for Numerical Control( 4*0.75) |
Spindle wire | Shielding high soft (3*1.5) |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
Control software | Artcam, Options(Type3, Ucancam,JDPaint,powermill etc) |
Running environment temperature | 0-45 °C |
Relative humidity | 30%-75% |
Tools | Total 15 pieces |
Accessories | Water pumps(2), tools(15), power line, USB line, fixtures(4), user
manual, software CDs, PCI NcStudio card(1), collets(3), spanners(2),
brush(1), water tanks |
Samples of separate cnc router machine for wood/metal/stone cutting and
engraving: :
Welcome for your enquiry !~
