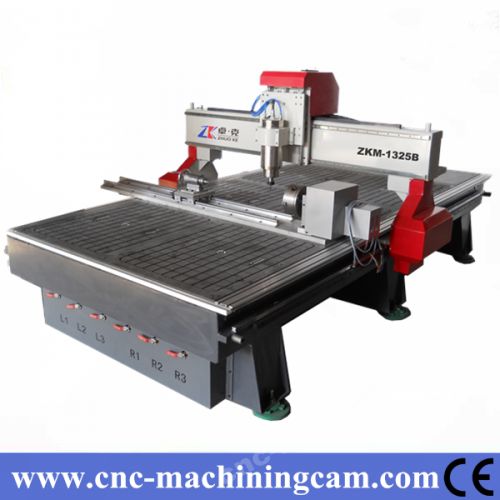

5.5KW spindle wood cnc machines ZK-1325MB(1300*2500*200mm)
Samples of 5.5KW spindle wood cnc machines :
Machine's feature of 5.5KW spindle wood cnc machines :
1, Heavy duty body ,make the machine working more stable and has
higher precise.
2, Stepper motor and leadshine driver ensure the mahcine high
precise.
3, Taiwan TBI ball screw,make the mahcine working more accurate.
4, Artcam design software,easy operate and learn.
5, Mach3 control system,support win7+xp,realize 4 axies working
together.
6, Independent control carbinet ,easy check and operate.
7, Vacuum pump ,vacuum working table ,can suck the materials very
tight.easy operate.
8, 5.5KW water cooling spindle ,high efficiency ,high strength ,and
high performance.
9, Rotary dimeter 80mm ,working length 2500mm ,can process round
materials.
Application of 5.5KW spindle wood cnc machines :
1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic
wooden door ,no-paint door,avoid wind,process of the artistic
window,shoes cleaning machine,the cabinet of the playing machine
and the board,mahjong table,computer table .
2.Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi
material decoration products.
3.Model industry:It can engrave on the steal materials such as copper, aluminum
,iron etc and non-mental materials such as man-made marble, sand,
plastic board PVC materials, wood board etc.
4.Other field:It can engrave many image, embossment,and widely used in artistic
industry.
Parameter of cnc wood router projects:
Spindle Power | 5.5 KW water cooling spindle |
Spindle Speed | 0-24000r/min |
X,Y,Z axies working size | 1300*2500*200mm |
X, Y ,Z axies Transmssion | X,Y axies gear rank, Z axies Taiwan TBI ball screw |
Guide rail | Taiwan Yintai liner squire guide rail |
Drive Mode | Stepper motor |
Control System | Mach3 control system
(Option: DSP offline,PCI Nc-studio System) |
Design software | Artcam
Options:(Type3 , Ucancam, JDPaint , Mach3 ) |
Max.Traveling Speed | 32000mm/min |
Max. Working Speed | 12000mm/min |
Repositioning precision | ±0.03mm |
Mechanical precision | 0.05mm |
Command | G Code, *uoo, *mmg, *plt |
Suitable tools dimeter | ER20
3.175mm 4mm 6mm 8mm 10mm 12.7mm |
Working Voltage | AC220V/380V, 50/60Hz, single/three phase |
Warranty | 1 year for the mahcine ,half year for the spindle |
Certificate | CE |
Your enquiry is welcome!!
