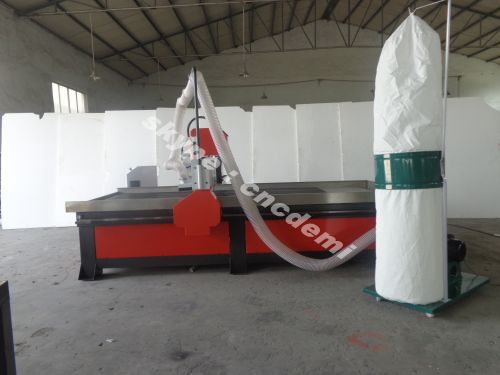

3.5KW air cooling spindle wood cutting machine cnc router 1325
(1300*2500*200mm)
Machine's feature of 3.5KW air cooling spindle wood cutting machine cnc router 1325 :
1, Heavy duty body ,make the machine working more stable and has
higher precise.
2, Japan YASKAWA servo motor and driver ensure the mahcine high
precise.
3, Taiwan TBI ball screw,make the mahcine working more accurate.
4, Artcam design software,easy operate and learn.
5, Original PCI Nc-studio control system,Top technology ,highest
precise and quility.
6, Independent control carbinet ,easy check and operate.
7, Dust collector ,suck the dust with good performance ,keep the
machine clean and tidy.
8, 3.5KW air cooling spindle,most high quility and good
performance.
Application of 3.5KW air cooling spindle wood cutting machine cnc router 1325 :
1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic
wooden door ,no-paint door,avoid wind,process of the artistic
window,shoes cleaning machine,the cabinet of the playing machine
and the board,mahjong table,computer table .
2.Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi
material decoration products.
3.Model industry:It can engrave on the steal materials such as copper, aluminum
,iron etc and non-mental materials such as man-made marble, sand,
plastic board PVC materials, wood board etc.
4.Other field:It can engrave many image, embossment,and widely used in artistic
industry.
Parameter of 3.5KW air cooling spindle wood cutting machine cnc router 1325 :
Spindle Power | 3.5KW air cooling spindle |
Spindle Speed | 0-18000r/min |
X,Y,Z axies working size | 1300*2500*200mm |
X, Y ,Z axies Transmssion | X,Y axies gear rank, Z axies Taiwan TBI ball screw |
Guide rail | Taiwan Yintai liner squire guide rail |
Drive Mode | Stepper motor |
Control System | Mach3 control system
(Option: DSP offline,Original PCI Nc-studio System) |
Design software | Artcam
Options:(Type3 , Ucancam, JDPaint , Mach3 ) |
Max.Traveling Speed | 32000mm/min |
Max. Working Speed | 12000mm/min |
Repositioning precision | ±0.03mm |
Mechanical precision | 0.05mm |
Command | G Code, *uoo, *mmg, *plt |
Suitable tools dimeter | ER20
3.175mm 4mm 6mm 8mm 10mm 12.7mm |
Working Voltage | AC220V/380V, 50/60Hz, single/three phase |
Warranty | 1 year for the mahcine ,half year for the spindle |
Certificate | CE |
Samples of of 3.5KW air cooling spindle wood cutting machine cnc router 1325 :
Your enquiry is welcome!!
