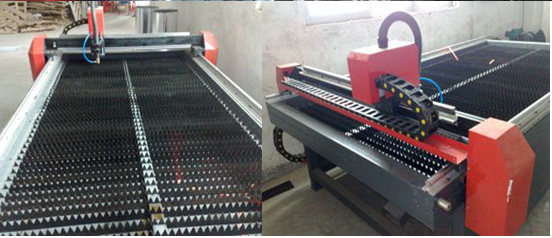

Plasma cutter for sale ZK-1325(1300*2500mm)
Feature of plasma cutter for sale:
1. Plasma power and cutting gun with high quality.
2. Cutting mouth , little and tidy and avoid second trimming.
3. Applied for metal sheet,aluminum slhet,stainless sheet,Titanium
sheet and so on
4. High cutting speed, high precision, and low cost.
5. Plasma power: 20A-60A / 380V, the plasma power can be adjusted .
6. Plasma source adopts advanced integrated module control system,
it ensures the high precision and stability .
7. With unique handling with breakpoint and interruption of power
supply, it can move forward and backward according to the track.
8. support Wentai, ARTCAM softwares, Type3 produce standard G code
way document,also can change software to read AUTOCAD softwares
9. The control system uses the U-disk exchange processing document,
easy to operate.
10. When machine working with water pump and tank provide
circulating water cooling.
11. Difference with other factory plasma cutting machine , this
machine use screw-ball as drive mode , which provide high precision
for this machine .
Application of plasma cutter for sale:
Used in all kinds of carbon materials, stainness steel, Aluminum,copper, titanium, nickel,
nonferrous metal precision sheet special for metal.
Parameter of plasma cutter for sale:
Model | cnc plasma cutting machine |
Working Area(X*Y) | 1300*2500mm (optional: 1500*3000mm, 2000*4000mm) |
Control system | Beijing START plasma cutting system Standard high sensitivity arc voltage device |
Motor and drive | Leadshine stepper motor and driver |
Working material | Iron, steel, aluminum, sheets, galvanized sheets, titanium plates,
etc |
Transmission system | X,Y Taiwan Hiwin high-precision,zero clearance increased linear
guide+ rack |
Input Voltage | 3 phase 380V / 50HZ |
Power supply | Domestic Huayuan 40A/63A/100A/160/200A |
Files transfer | USB office |
Work type | Untouched or Arc initiation |
plasma software | Fastcam |
Compatible with popular software | Type3/Artcam/Weitai/Beihang Haier etc |
Operation format | G code and HPGl |
Weight | 900kg |
Dimensions | 1350*2850mm |
Cutting size | 1500*3000 |
Cutting speed | 0-12000mm/min |
Operation temperature | 0 to +40°C; |
storage temperature | -40 to +60°C |
Cutting ability of plasma cutter for sale:
Material | Thickness(mm) | Current(A) | The max cutting speed (mm/min) |
Mile steel | 6.4 | 60 | 3353 |
9.5 | 60 | 1600 |
12.7 | 60 | 1067 |
15.9 | 60 | 787 |
20.0 | 60 | 559 |
Aluminum | 6.4 | 60 | 3683 |
9.5 | 60 | 1880 |
12.7 | 60 | 1395 |
15.9 | 60 | 838 |
Stainless steel | 6.4 | 60 | 2794 |
9.5 | 60 | 1346 |
12.7 | 60 | 889 |
15.9 | 60 | 660 |
20.0 | 60 | 456 |
Samples of plasma cutter for sale:
Your enquiry is welcome !!
