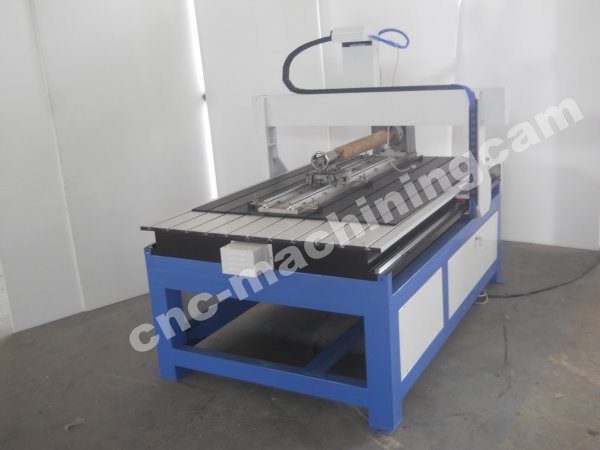

4th axies wood carvings cnc machine ZK-1015 (1000*1500*200mm)
Machine's feature of wood carvings cnc mahcine :
1, Economical structure ,hot-sale style.
2, Stepper motor and leadshine driver,economical ,higher precise.
3, Taiwan TBI ball screw,make the mahcine working more accurate.
4, Artcam design software,easy operate and learn.
5, DSP offline control system,easy operate and convenicent.
6, Taiwan Hiwin guide rail ,higher precise ,strong bearing ,long
use life.
Application of wood carvings cnc mahcine :
1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic
wooden door ,no-paint door,avoid wind,process of the artistic
window,shoes cleaning machine,the cabinet of the playing machine
and the board,mahjong table,computer table .
2.Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi
material decoration products.
3.Model industry:It can engrave on the steal materials such as copper, aluminum
,iron etc and non-mental materials such as man-made marble, sand,
plastic board PVC materials, wood board etc.
4.Other field:It can engrave many image, embossment,and widely used in artistic
industry.
Parameter of wood carvings cnc mahcine :
Spindle Power | 1.5KW air cooling spindle |
Spindle Speed | 0-24000r/min |
X,Y,Z axies working size | 1000*1500*200mm |
X, Y ,Z axies Transmssion | Taiwan TBI ball screw |
Guide rail | Taiwan Hiwin guide rail |
Drive Mode | Stepper motor |
Control System | DSP offline
(Option: Mach3, PCI Nc-studio System) |
Design software | Artcam
Options:(Type3 , Ucancam, JDPaint , Mach3 ) |
Max.Traveling Speed | 32000mm/min |
Max. Working Speed | 25000mm/min |
Repositioning precision | ±0.03mm |
Mechanical precision | 0.05mm |
Command | G Code, *uoo, *mmg, *plt |
Suitable tools dimeter | ER11
3.175mm 4mm 6mm |
Working Voltage | AC220V , 50/60Hz, single phase |
Warranty | 1 year for the mahcine ,half year for the spindle |
Certificate | CE |
Sample of wood carvings cnc mahcine :
Your enquiry is welcome!!
